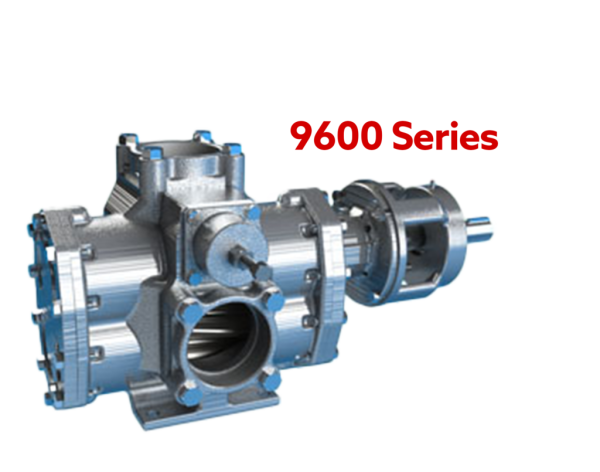

9600 Series
The 9600 Series features seal conversions that can be done easily in the field. This pump’s Stainless Steel construction ensures a long life. It can be easily assembled and disassembled, with an adjustable relief valve. The 9600 Series has pressures up to 100 PSI, and flows up to 165 GPM.
- SST Construction
- Easy Assembly / Disassembly
- Optional Hydraulic Motor Drive Arrangement
- Optional Gearbox
Product Details
- Housings 316 stainless steel (ASTM A743)
- Gears & Shafts 17-4PH (ASTM 564 Type 630)
- Carbon graphite journal bearings
- Teflon™ case gaskets
- Teflon™ mechanical seal or graphite impregnated Teflon™ packing
- Direct couple hydraulic motor drive bracket (SAE A or SAE B)
- Easy field conversion between mechanical seal & packing
- GHB option
- Transferring wide range of corrosive products, acids, caustics, & solvents
