Stock Motors

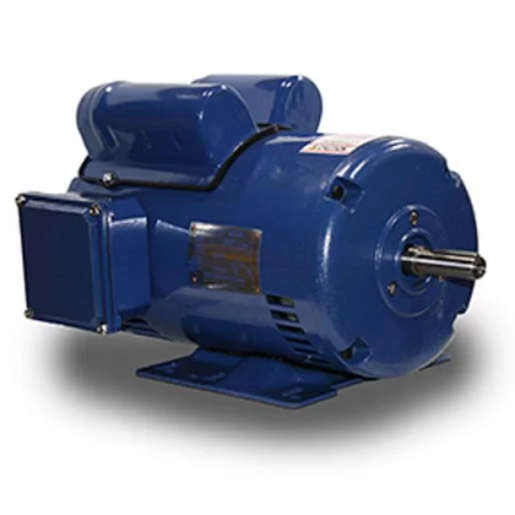

HVAC Single Phase ODP
- HP: 1/4 HP through 3 HP
- Speed: 3600, 1800 RPM
- Voltage: 115/208/230V (Tri-Voltage)
- Frequency: 60 Hz

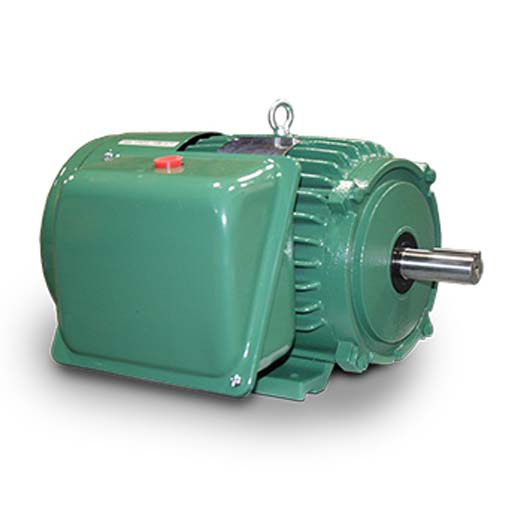

Farm Duty Single Phase
- HP: 1/3 HP through 10 HP
- Speed: 1800 RPM
- Voltage: 115/230V
- Frequency: 60 Hz

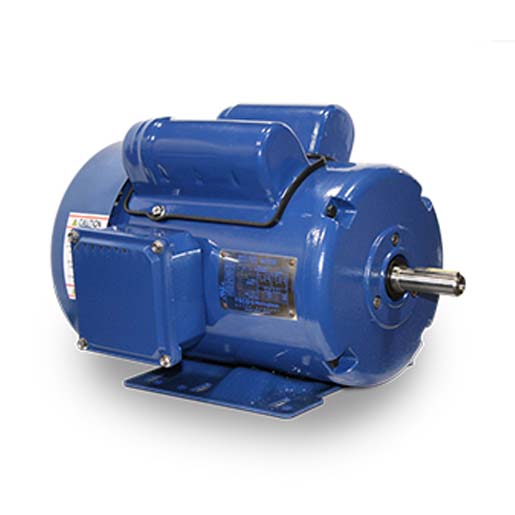

HVAC Single Phase TEFC
- HP: 1/4 - 10 HP
- Speed: 3600, 1800 RPM
- Voltage: 115/208/230V (Tri-Voltage)
- Frequency: 60 Hz

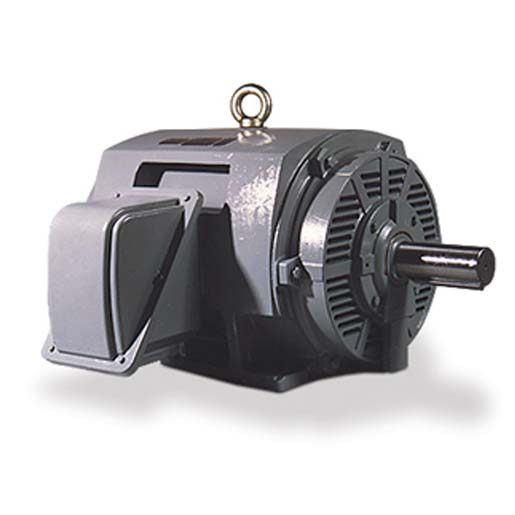

Cast Iron ODP NEMA Premium
- HP: 1 HP through 800 HP
- Speed: 3600, 1800, 1200 RPM
- Voltage: 230/460V (usable on 208V)
- Frequency: 60 Hz

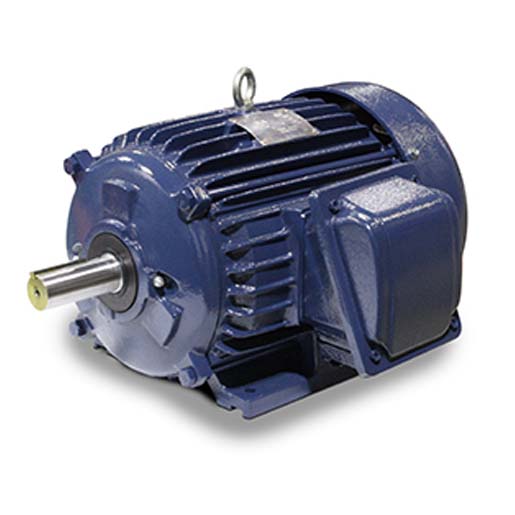

Oil Well Pump
- HP: 5 HP through 125 HP
- Speed: 1200 RPM
- Voltage: 230V, 460V, 796V
- Frequency: 60 Hz

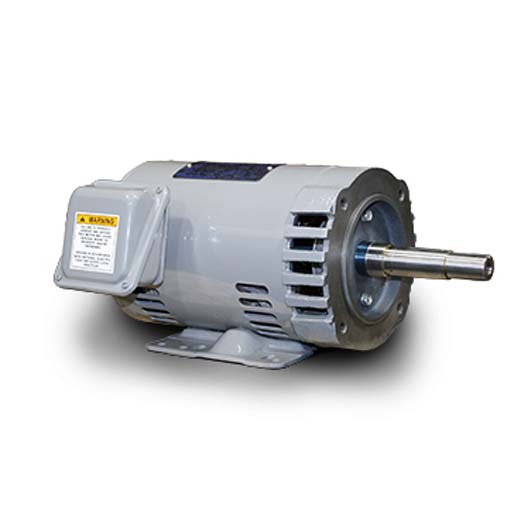

Rolled Steel JP/JM NEMA Premium
- HP: 1/3 HP through 40 HP
- Speed: 3600, 1800, 1200 RPM
- Voltage: 230V/460V (Usable on 200 and 208V)
- Frequency: 60 Hz

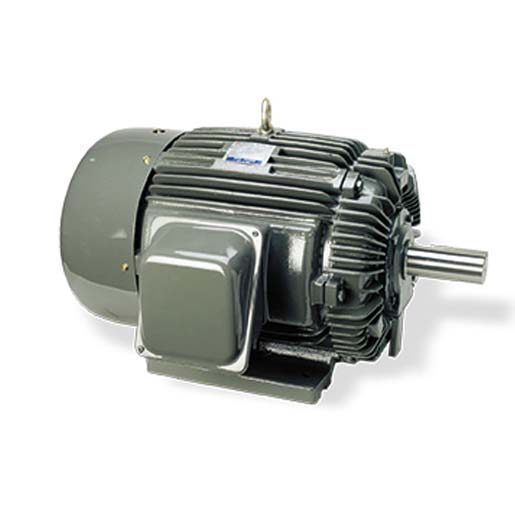

2 Speed, 1 Winding, Variable Torque
- HP: 100 HP through 300 HP
- Speed: 1800, 900 RPM
- Voltage: 460V only
- Frequency: 60 Hz

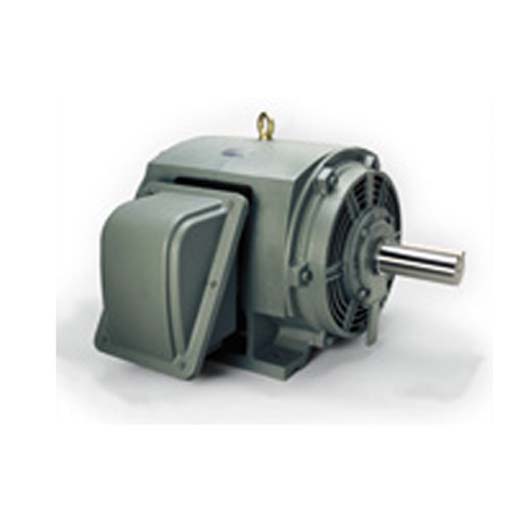

3-Phase Fractional HP
- HP: 1/3 HP through 2 HP
- Speed: 3600, 1800, 1200 RPM
- Voltage: 230/460V, (usable on 200 & 208V)
- Frequency: 60 Hz

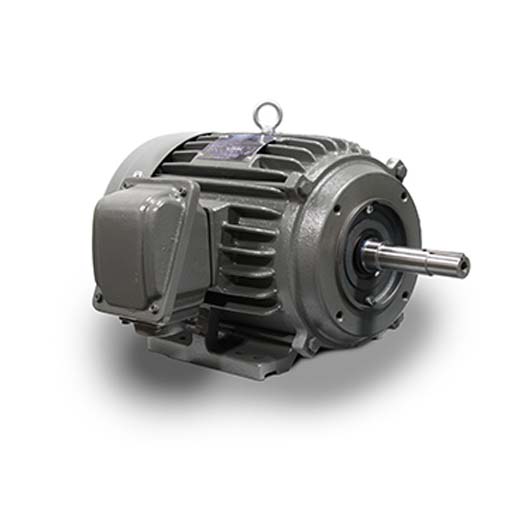

Cast Iron TEFC JP/JM
- HP: 3/4 HP through 50 HP
- Speed: 3600, 1800, 1200 RPM
- Voltage: 230/460V (usable on 208V)
- Frequency: 60 Hz

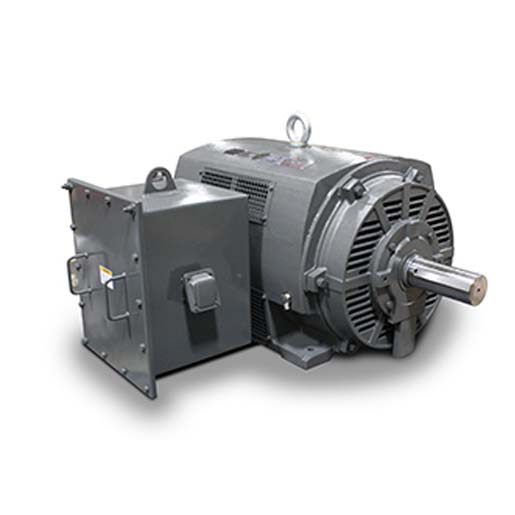

Global MAX WPI
- HP: 100 HP through 2000 HP
- Speed: 3600, 1800, 1200, 900 RPM
- Voltage: 2300/4000V
- Frequency: 60 Hz

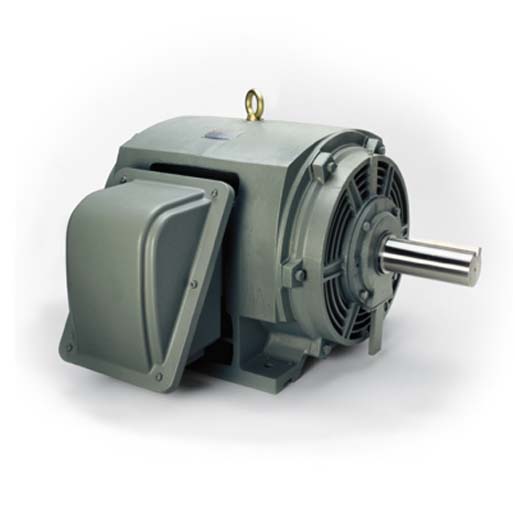

GLOBAL WPI
- HP: 100 HP through 1000 HP
- Speed: 3600, 1800, 1200, 900 RPM
- Voltage: 2300/4160V
- Frequency: 60 Hz

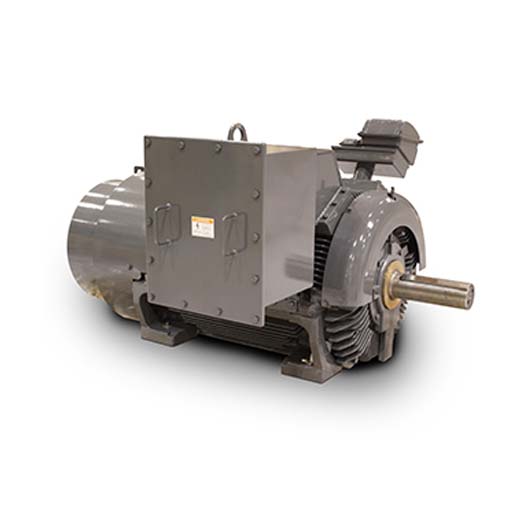

Global Max TEFC
- HP: 500 HP through 2000 HP
- Speed: 3600, 1800, 1200, 900 RPM
- Voltage: 2300V/4000V
- Frequency: 60 Hz

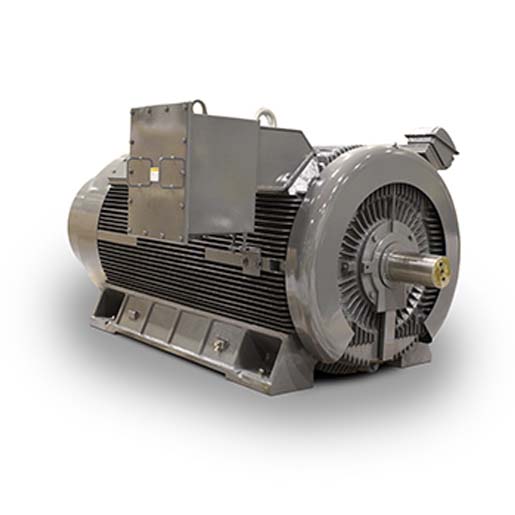

Global-XPE
- HP: 100 HP through 2000 HP
- Speed: 3600, 1800, 1200, 900 RPM
- Voltage: 2300V/4160V
- Frequency: 60 Hz

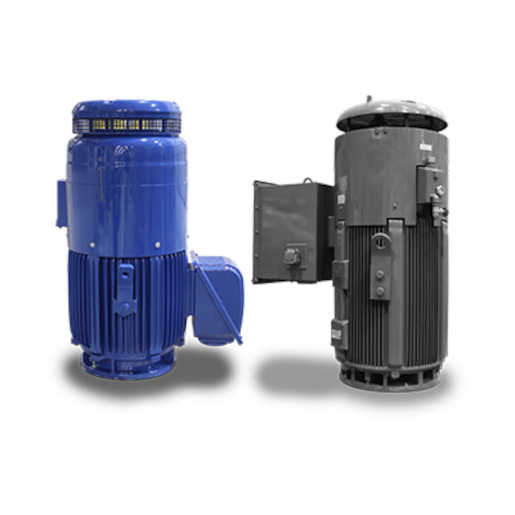

TEFC Low Voltage High Thrust with “P” Base
- HP: 15 HP through 800 HP
- Speed: 1800, 1200 RPM
- Voltage: 230/460V
- Frequency: 60 Hz

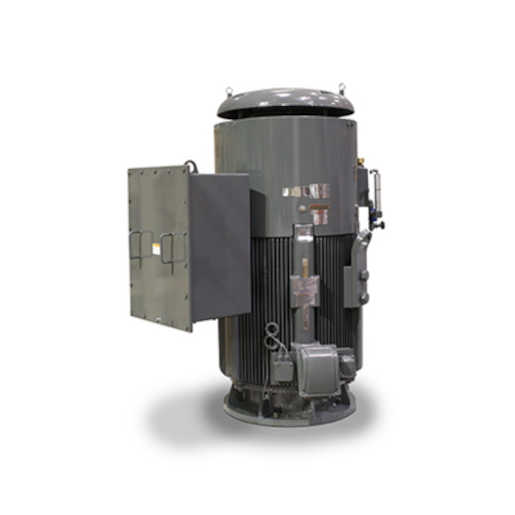

TEFC Medium Voltage High Thrust With “P” Base
- HP: 200 HP through 700 HP
- Speed: 1800, 1200 RPM
- Voltage: 2300/4000V
- Frequency: 60 Hz

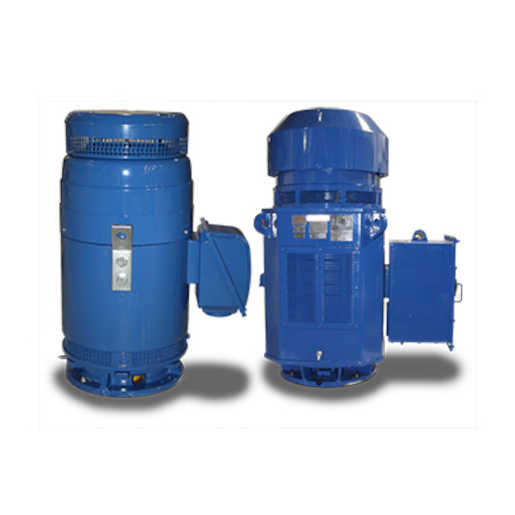

WPI Low Voltage High Thrust with “P” Base
- HP: 7.5 HP through 800 HP
- Speed: 1800 RPM
- Voltage: 230/460V, (Usable on 208V)
- Frequency: 60 Hz

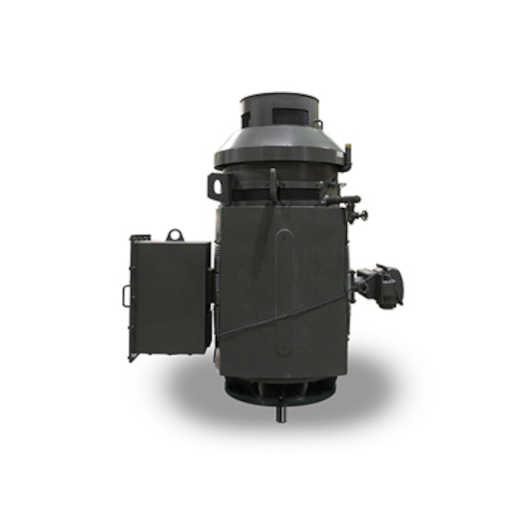

WPI Medium Voltage High Thrust with “P” Base
- HP: 200 HP through 1000 HP
- Speed: 1800, 1200 RPM
- Voltage: 2300/4000V
- Frequency: 60 Hz

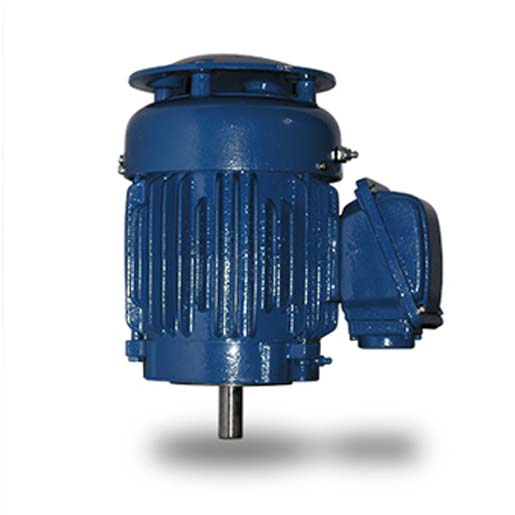

MAX-E2/841 TEFC SS Low Voltage Normal Thrust with “P” Base
- HP: 15 HP through 100 HP
- Speed: 3600, 1800, 1200 RPM
- Voltage: 460V
- Frequency: 60 Hz

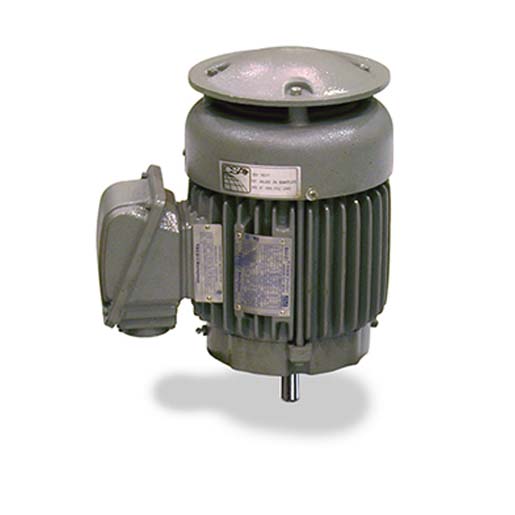

MAX-PE TEFC SS Low Voltage Normal Thrust with “P” Base
- HP: 15 HP through 200 HP
- Speed: 3600, 1800, 1200 RPM
- Voltage: 230/460V (Usable on 208V)
- Frequency: 60 Hz
TEFC SS Low Voltage High Thrust With “P” Base
- HP: 15 HP through 800 HP
- Speed: 1800, 1200 RPM
- Voltage: 230/460V (Usable on 208V)
- Frequency: 60 Hz

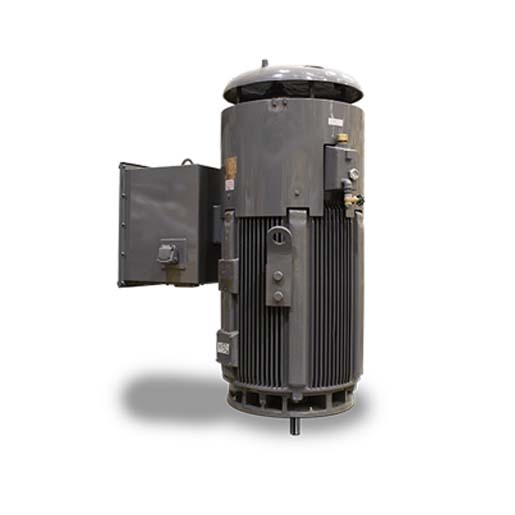

TEFC SS Medium Voltage High Thrust With “P” Base
- HP: 200 HP through 700 HP
- Speed: 1800, 1200 RPM
- Voltage: 2300/4000V
- Frequency: 60 Hz

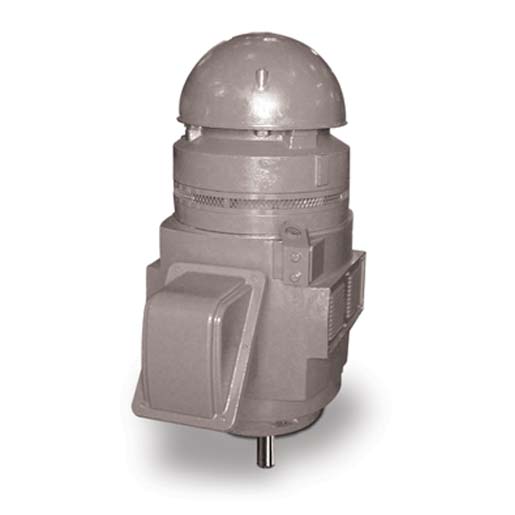

WPI SS Low Voltage High Thrust with “P” Base
- HP: 15 HP through 800 HP
- Speed: 1800, 1200 RPM
- Voltage: 230/460V (Usable on 208V)
- Frequency: 60 Hz

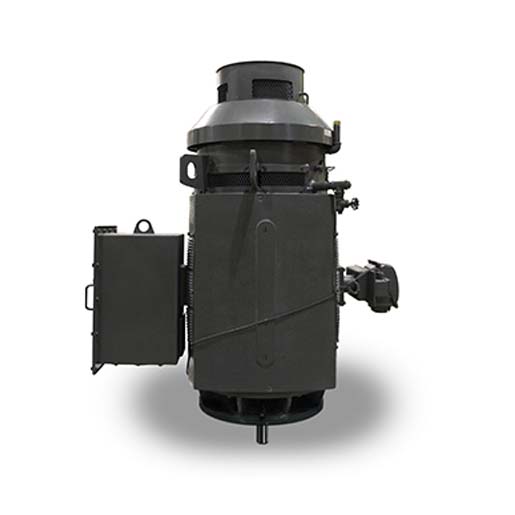

WPI SS Medium Voltage High Thrust with “P” Base
- HP: 200 HP through 1000 HP
- Speed: 1800, 1200, 900 RPM
- Voltage: 2300/4000V
- Frequency: 60 Hz
Custom Motors

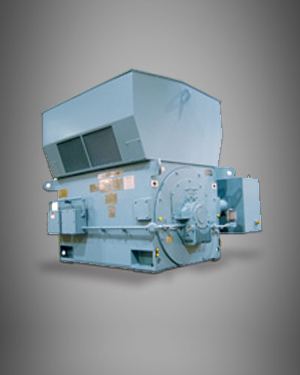

World Series™ Induction Motors
This top-quality line of induction motors is distinguished by high efficiencies, advanced software design capabilities, metric frame sizes and TECO-Westinghouse’s reputation for quality and reliability.

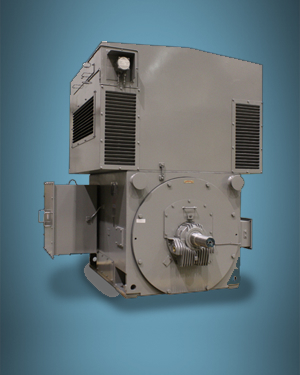

Quick Ship Induction Motors
- 300 hp – 3000 hp Induction Motors
- 3600 RPM; 2300/ 4160V; WP2 Enclosure
- Ideal for H-Pump Applications
- Bi-directional, F1 and F2
- Inverter Duty Design
- Anti-friction or Spherically Seated Self-Aligning, Split-Sleeve Bearings
- Air Filters & Differential Pressure Switch Included

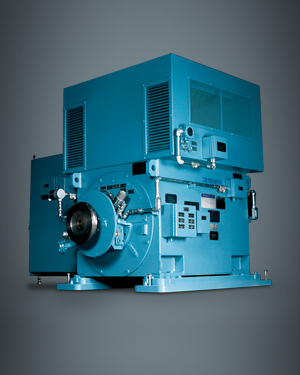

Rock 541 Petrochemical
- 300 hp – 3000 hp Induction Motors Available from Stock
- 3600 RPM; 2300/ 4160V; WP2 Enclosure
- Ideal for H-Pump Applications
- Suitable for Class 1, Div 2, Groups B, C & D; Temp Code T3C
- Bi-directional, F1 and F2
- Inverter Duty Design
- Anti-friction or Spherically Seated Self-Aligning, Split-Sleeve Bearings
- Air Filters & Differential Pressure Switch Included

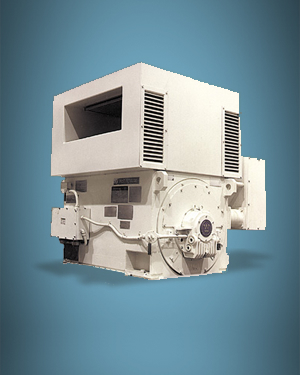

PAM Two-Speed
- The speeds of a PAM Motor are changed electrically, rather than mechanically. This reduces HP input to the fan, thereby eliminating the need for speed-adjusting coupling devices, which are prone to slip energy loss.
- A PAM Motor is a practical and effective means of driving a load where a change of speed can provide operating economies.
- First costs are lower than that for a comparable two-speed, two-winding motor.

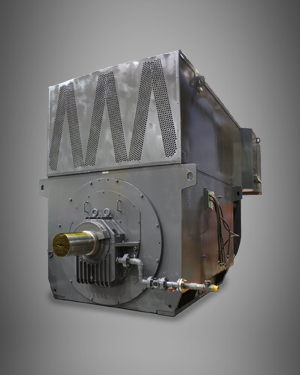

Wound Rotor
- Available from 100 hp up to 10,000 hp
- Brushes selected that provide high performance under varying load conditions
- High-grade steel shaft material
- Continuously rated sliprings & brushgear
- Brush lifting & short circuiting device available
- Designed for high-starting torque with low inrush current

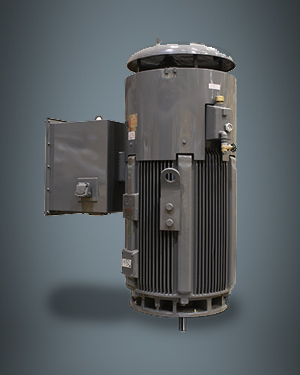

Vertical Motors
Available in sizes up to 25,000 hp, TECO-Westinghouse large Vertical motors offer many of the time-tested features found on our World Series™ line of motors.
Synchronous Machines
- Constant-speed operation
- High efficiency ratings
- Low inrush currents
- Leading power factor (for corrective KVA capability)
Direct Current Motors
Available in sizes ranging from 22-inch to 12-foot armature diameters, with available power ratings from 250 hp to over 35,000 hp.
