V Series

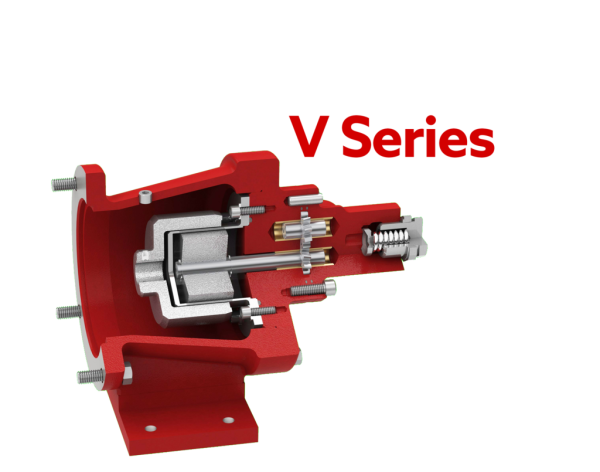

The V Series is a magnetic drive, seal-less helical gear pump. It has neodymium magnets with up to 5ft/lb torque in strength and a stainless steel containment shell. This pump has ductile iron housings with hardened steel gears and shafts, plus through ports. The V Series is capable of running at nominal 1800 rpm motor speeds, and has up to 5.4 GPM max flow.
- Helical Gears for Quiet Operation
- Bi-Directional Rotation
- Designed for Close-Coupled or Foot-Mounted Construction
- Sealless Design
- Self Priming
Product Details
- Ductile iron housings
- Hardened steel shafts
- Hardened steel gears
- Helical gears for quiet operation
- Carbon bearings
- Neodymium magnets up to 5ft/lb torque
- Stainless steel containment shell
- Close coupled mounting standard; optional foot mounted bracket
- Integral Pressure Relief Valve
- Buna, Viton® or Teflon™ O-rings
- Bi-directional rotation
- Chemical process
- Gasoline additives
- Adhesives
